Main Overview Replacement Parts

Search Results for

    Parts
    Part
    Sub-Model Link

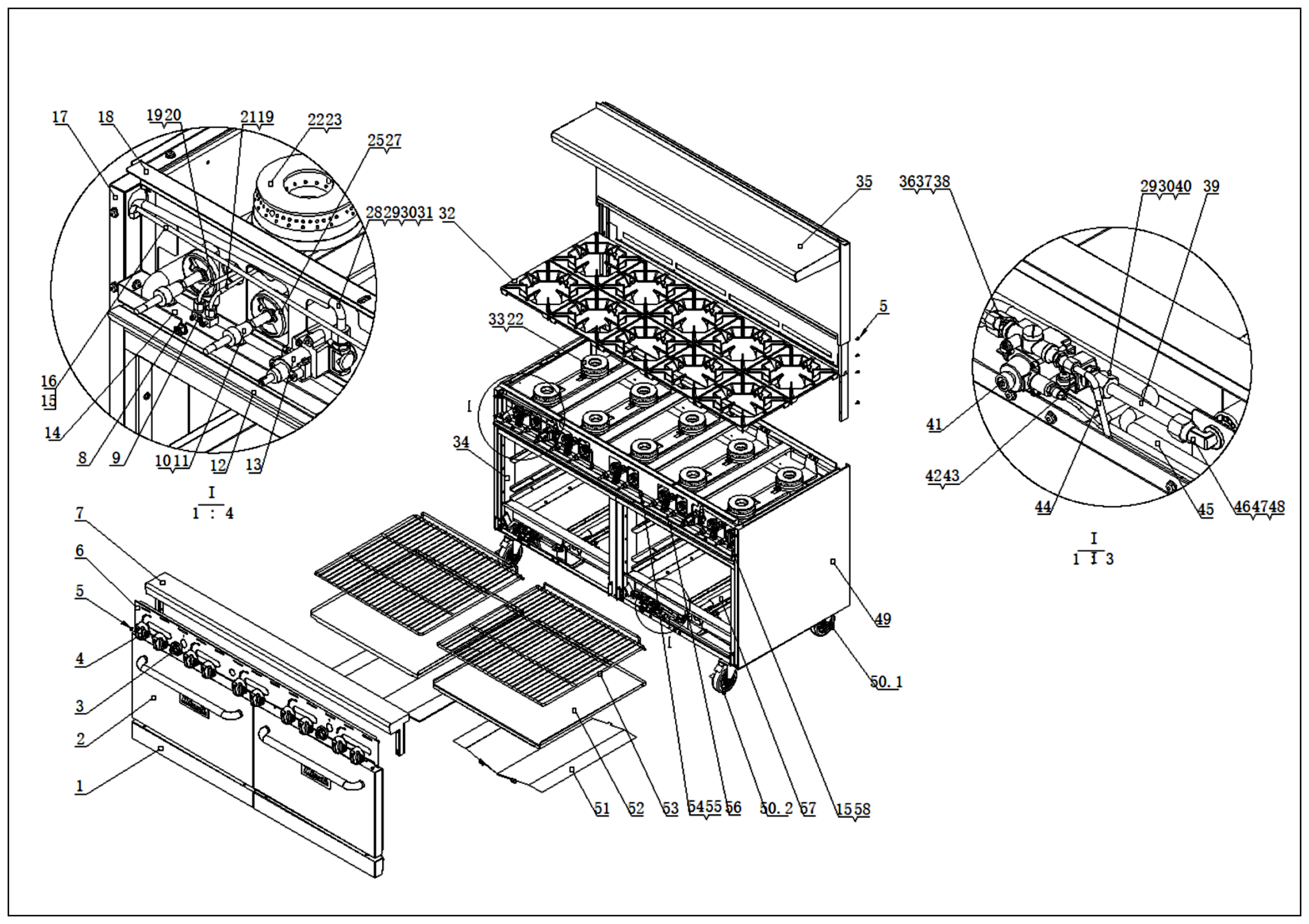

    Diagram

    Parts
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    19
    20
    21
    22
    22
    23
    23
    25
    25
    27
    27
    28
    29
    29
    30
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50.1
    50.2
    51
    52
    53
    54
    55
    56
    57
    58

    Parts

    Click on any of the numbers below to highlight the part on the diagram above
    1. 1
      Underside Face Plate Of Oven 9
      Underside Face Plate Of Oven 9
      SKU: 1759-1241

      1

      Needed
      $0.00
    2. 2
      Oven Door Assembly
      Oven Door Assembly
      SKU: 1759-2108

      1

      Needed
      $0.00
    3. 3
      Oven Thermostat Value Knob
      Oven Thermostat Value Knob
      SKU: 1759-1337

      1

      Needed
      $0.00
    4. 4
      Migali Cooking Knob With Red Flame
      Migali Cooking Knob With Red Flame
      SKU: 1759-1093

      1

      Needed
      $0.00
    5. 5
      Galvanized Hexagon Head Flange
      Galvanized Hexagon Head Flange
      SKU: 1759-2109

      1

      Needed
      $0.00
    6. 6
      Control Panel C-RO10
      Control Panel C-RO10
      SKU: 1759-2223

      1

      Needed
      $0.00
    7. 7
      Table Board Front Board Assembly
      Table Board Front Board Assembly
      SKU: 1759-2141

      1

      Needed
      $0.00
    8. 8
      Galvanized Flange Face Unit
      Galvanized Flange Face Unit
      SKU: 1759-152

      1

      Needed
      $0.00
    9. 9
      Pilot Light Valve Double Unit
      Pilot Light Valve Double Unit
      SKU: 1759-01

      1

      Needed
      $0.00
    10. 10
      Gas Restaurant Ranges Nozzle [NG]
      Gas Restaurant Ranges Nozzle [NG]
      SKU: 1759-2112

      1

      Needed
      $0.00
    11. 11
      A18 Stopcock A18-318 C-RB36-NG
      A18 Stopcock A18-318 C-RB36-NG
      SKU: 1759-111

      1

      Needed
      $0.00
    12. 12
      Catch Tray Of Gas Restaurant Ranges
      Catch Tray Of Gas Restaurant Ranges
      SKU: 1759-2142

      1

      Needed
      $0.00
    13. 13
      Oven Thermostat Valve C-RO6-NG
      Oven Thermostat Valve C-RO6-NG
      SKU: 1759-1036

      1

      Needed
      $0.00
    14. 14
      Input Pipec-RO10
      Input Pipec-RO10
      SKU: 1759-2224

      1

      Needed
      $0.00
    15. 15
      Normally Open Fire Valve
      Normally Open Fire Valve
      SKU: 1759-1384

      1

      Needed
      $0.00
    16. 16
      Intake Tube - Pilot Fire Input
      Intake Tube - Pilot Fire Input
      SKU: 1759-1292

      1

      Needed
      $0.00
    17. 17
      Side Block Panel (Left) C-RO
      Side Block Panel (Left) C-RO
      SKU: 1759-2114

      1

      Needed
      $0.00
    18. 18
      Upper Stove Body C-R10
      Upper Stove Body C-R10
      SKU: 1759-2225

      1

      Needed
      $0.00
    19. 19
      Pilot Light Head A73007/Tip047
      Pilot Light Head A73007/Tip047
      SKU: 1759-135

      1

      Needed
      $0.00
    20. 20
      Pilot Light Intake Pipe Of Gas
      Pilot Light Intake Pipe Of Gas
      SKU: 1759-2116

      1

      Needed
      $0.00
    21. 21
      Pilot Light Intake Pipe Of Gas
      Pilot Light Intake Pipe Of Gas
      SKU: 1759-2117

      1

      Needed
      $0.00
    22. 22
      Burner Lid
      Burner Lid
      SKU: 1759-2101

      1

      Needed
      $0.00
    23. 23
      Short Ejector
      Short Ejector
      SKU: 1759-2100

      1

      Needed
      $0.00
    24. 25
      Damper Cover
      Damper Cover
      SKU: 1759-169

      1

      Needed
      $0.00
    25. 27
      Galvanized Cross Pan Head Screw
      Galvanized Cross Pan Head Screw
      SKU: 1759-154

      1

      Needed
      $0.00
    26. 28
      Main Fire Intake Pipe C-RO4-LP
      Main Fire Intake Pipe C-RO4-LP
      SKU: 1759-1148

      1

      Needed
      $0.00
    27. 29
      Cooper Nut (M16)
      Cooper Nut (M16)
      SKU: 1759-1143

      1

      Needed
      $0.00
    28. 30
      Cooper Hoop (I/O 10)
      Cooper Hoop (I/O 10)
      SKU: 1759-1144

      1

      Needed
      $0.00
    29. 31
      Copper Connector C-RO4-24Gl-Np
      Copper Connector C-RO4-24Gl-Np
      SKU: 1759-1772

      1

      Needed
      $0.00
    30. 32
      Octangular Cooking Grate
      Octangular Cooking Grate
      SKU: 1759-1799

      1

      Needed
      $0.00
    31. 33
      Long Ejecting Tube
      Long Ejecting Tube
      SKU: 1759-2102

      1

      Needed
      $0.00
    32. 34
      Lower Stove Body Assembly C-RO
      Lower Stove Body Assembly C-RO
      SKU: 1759-2145

      1

      Needed
      $0.00
    33. 35
      Back Gaurd Assembly C-RO10-NG/
      Back Gaurd Assembly C-RO10-NG/
      SKU: 1759-1733

      1

      Needed
      $0.00
    34. 36
      Copper Nut (M10)
      Copper Nut (M10)
      SKU: 1759-1140

      1

      Needed
      $0.00
    35. 37
      Copper Hoop 010
      Copper Hoop 010
      SKU: 1759-1141

      1

      Needed
      $0.00
    36. 38
      Copper Connector (7/16" To M10
      Copper Connector (7/16" To M10
      SKU: 1759-1142

      1

      Needed
      $0.00
    37. 39
      Main Fire Intake Pipe Of Stove
      Main Fire Intake Pipe Of Stove
      SKU: 1759-2124

      1

      Needed
      $0.00
    38. 41
      Oven Safety Valve C-R06-NG, C-
      Oven Safety Valve C-R06-NG, C-
      SKU: 1759-1037

      1

      Needed
      $0.00
    39. 42
      Kindling Support (Ng)
      Kindling Support (Ng)
      SKU: 1759-1068

      1

      Needed
      $0.00
    40. 43
      Thermocouple C-RO-36G (Ng/LP),
      Thermocouple C-RO-36G (Ng/LP),
      SKU: 1759-1092

      1

      Needed
      $0.00
    41. 44
      Main Fire Exit C-RO4-24GR
      Main Fire Exit C-RO4-24GR
      SKU: 1759-1294

      1

      Needed
      $0.00
    42. 45
      Pilot Fire Intake Pipe Of Stov
      Pilot Fire Intake Pipe Of Stov
      SKU: 1759-2136

      1

      Needed
      $0.00
    43. 46
      Male Copper Elbow C-RO4
      Male Copper Elbow C-RO4
      SKU: 1759-1415

      1

      Needed
      $0.00
    44. 47
      Copper Nut C-CO
      Copper Nut C-CO
      SKU: 1759-2065

      1

      Needed
      $0.00
    45. 48
      Oven Burner Nozzle Ng # 39 0 2
      Oven Burner Nozzle Ng # 39 0 2
      SKU: 1759-1423

      1

      Needed
      $0.00
    46. 49
      Side Block Panel (Right)
      Side Block Panel (Right)
      SKU: 1759-2125

      1

      Needed
      $0.00
    47. 50.1
      Range Wheel/ Stem Caster Witho
      Range Wheel/ Stem Caster Witho
      SKU: 1759-1075

      1

      Needed
      $0.00
    48. 50.2
      Range Wheel / Caster Stem With Brake (Red)
      Range Wheel / Caster Stem With Brake (Red)
      SKU: 1759-1074

      1

      Needed
      $0.00
    49. 51
      Radiant Panel Of Stove C-RO6-2
      Radiant Panel Of Stove C-RO6-2
      SKU: 1759-2146

      1

      Needed
      $0.00
    50. 52
      Stove Base Plate C-RO6-12
      Stove Base Plate C-RO6-12
      SKU: 1759-2147

      1

      Needed
      $0.00
    51. 53
      Oven Rack L / Stove Net Rack
      Oven Rack L / Stove Net Rack
      SKU: 1759-1009

      1

      Needed
      $0.00
    52. 54
      Needle Type Pressure Joint C-G
      Needle Type Pressure Joint C-G
      SKU: 1759-133

      1

      Needed
      $0.00
    53. 55
      Needle Type Pressure Joint ARB
      Needle Type Pressure Joint ARB
      SKU: 1759-134

      1

      Needed
      $0.00
    54. 56
      Catch Tray Of Gas Restaurant Ranges
      Catch Tray Of Gas Restaurant Ranges
      SKU: 1759-2226

      1

      Needed
      $0.00
    55. 57
      Stove Burner
      Stove Burner
      SKU: 1759-1675

      1

      Needed
      $0.00
    56. 58
      Pilot Fire Inlet Tube Of Stove
      Pilot Fire Inlet Tube Of Stove
      SKU: 1759-2196

      1

      Needed
      $0.00

    Parts Not In Diagram

    1. Not Shown
      Copper Connector 11/16" To M16
      Copper Connector 11/16" To M16
      SKU: 1759-1145

      1

      Needed
      $0.00
